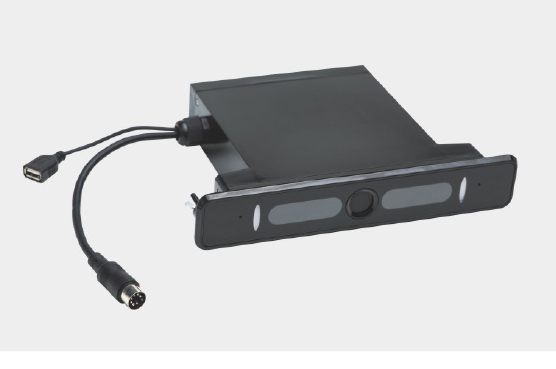

WECO-Laic Intelligent Door Detector
1.Performance Parameter
| Protection Range | According to requirements for car height and door opening width | |
| Operating environment | -20℃——+65℃,100000Lux | |
| Response time | 100ms | |
| Power consumption | less then 20W |
|
| Singal output | Relay 1NO+1NC 1A 230ACV | |
| Operating voltage | 100~240VAC 50/60Hz | |
| Led indicators on panel | Yellow: Object detected | Green: No detected |
| Protection rating | IP65 | |
| 2D detecting accurancy | For statiionary objects, the diameter should be not less then 50MM, For moving objects, not less then 10MM | |
3D detecting |
Within 0.5m away from the landnig door, when an object or person (diameter not less then 10mm) has a movement tendency to enter the car,the light curtain can detect and ouput singal.. | |
Regular self-checking |
The device checks itself every 30 seconds. During self-checking process, it will not affect the normal use ofall functions of the elevator: when malfunction is detected, the port outputs the door opening sianal, and afterthe malfunction indicator of yellow LED flashing for 30 seconds, the device starts to enter the automatic repairmode. | |
To meet the protection height of 1600mm, the requirement for car height and door opening width are as below:
| Car Height | 2000mm | 2100mm | 2200mm | 2300mm | 2400mm | 2500mm | 2600mm | 2700mm |
| Door Opening width | ≤800MM | ≤1000MM | ≤1200MM | ≤1350MM | ≤1550mm | ≤1750mm | ≤2000mm | ≤2150mm |

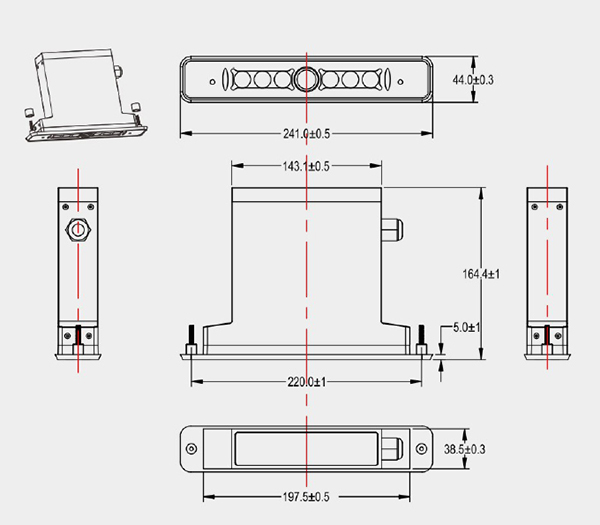

2.Installation Drawing And Profile Size
